UA Tech Park at The Bridges - Research Facility Concept | Revit (BIM + Construction Documentation)

Four-story academic research facility, totaling over 60,000 SF of conditioned space, modeled in Revit for the University of Arizona campus. Scope included full BIM model development, program layout across labs, classrooms, offices, and collaborative spaces, and a complete construction document set.



Deliverables: multi-level floor plans, building sections, wall section details, and construction details.

Screenshot 2026-04-21 165252.png

Level 1 floor plan (cropped) — courtyard organization, program layout, and room relationships across academic and collaborative spaces.

Longitudinal building section — structural system, floor-to-floor heights, and vertical circulation.

Exterior wall section — masonry assembly, insulation strategy, roof connection, and material layering.

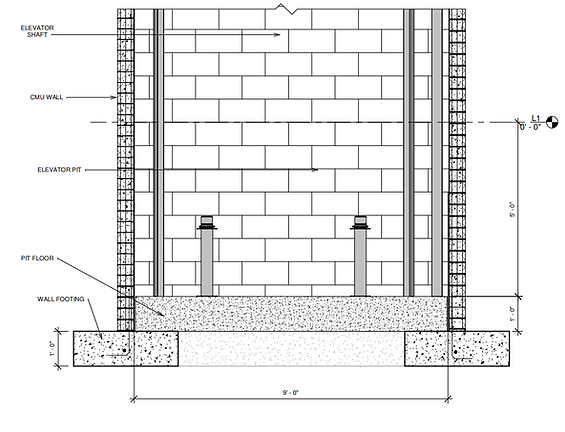

Stair and elevator core — structural alignment, vertical circulation, and floor assembly at each level.

Revit exterior render — north facade and site context.
